  • Disposable Endoscopic Linear Cutting Staplers

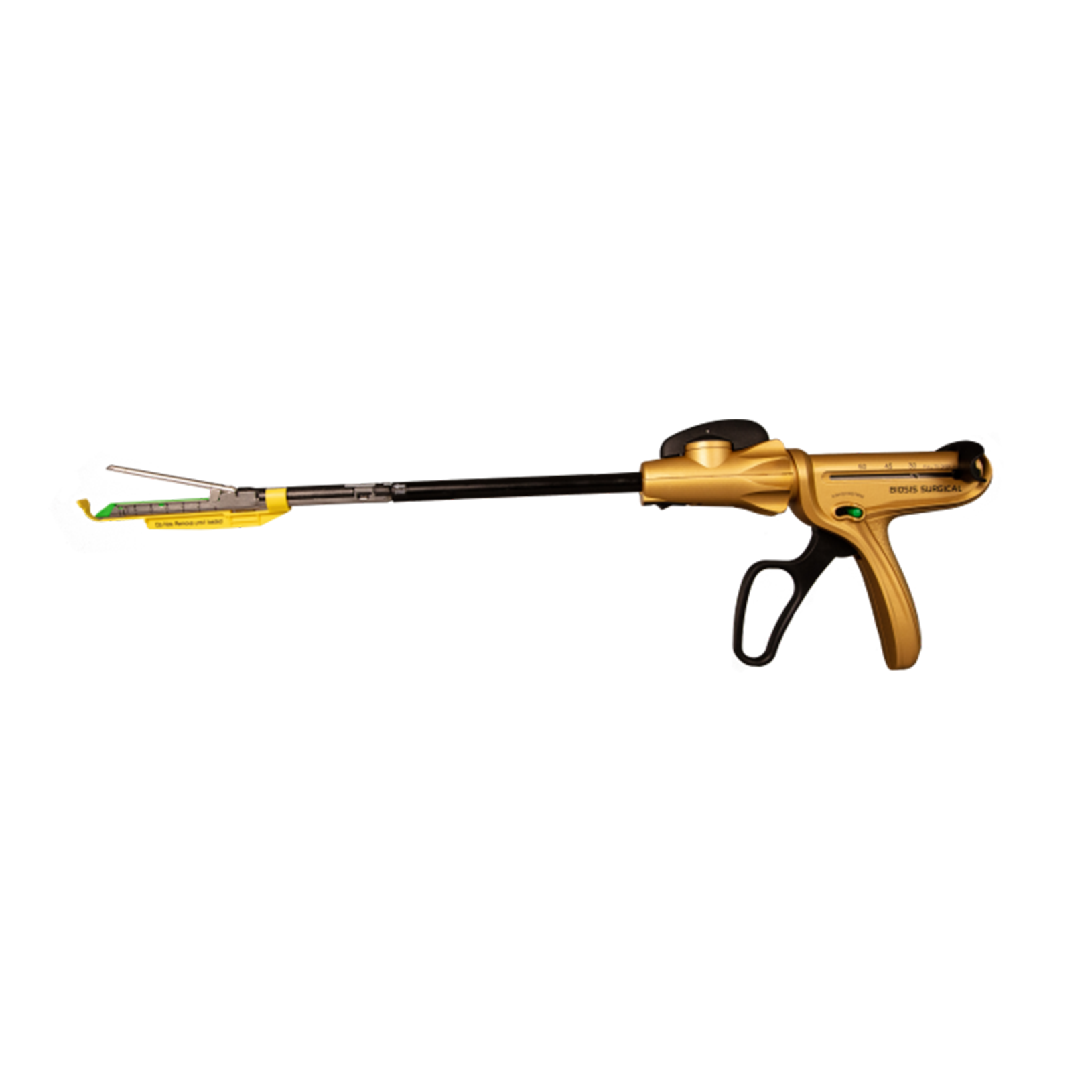

    The Endo Linear Cutter Stapler places two, triple-staggered rows of titanium staples and simultaneously divides the tissue between the two triple-staggered rows. The size of the staples is determined by the selection of the 2.5mm, 3.5mm or 4.8mm Reloading Unit for Endo Linear Cutter Stapler . The Endo Linear Cutter Stapler is available for three different length of Short (RJELC-AS) , standard (RJELC-AM) and long shaft (RJELC-AL), it will accommodate any of the reloading unit sizes that are available in the 30mm, 45mm, and 60mm lines.



    Indications


    The Endo Linear Cutter Stapler has applications in abdominal, gynecologic, pediatric and thoracic surgery for resection, transaction and creation of anastomosis.

  • Features


    1.Fully compatible with 28pcs cartridges ,reloading unit sizes that are available in the 30mm, 45mm and 60mm
    2. Green firing lock to prevent misfiring
    3. The shaft 360 rotates to grasp the tissue at different angles
    4. the rotation collar can swing 0, 22.5 °, 45 °on both left and right for the operation at different angles
    5. Integrated Gap Control Mechanism , staples can be perfectly formed into B-shape
    6.The Stapler may be reloaded and fired up to 25 times in a single procedure
    7. Each reloading unit with a new blade to ensure smooth cuts, and prevent cross infection or planting metasasis
    8. Single-handed operation ,make the operation easier



    Specifications


Three different lengths of the shaft


RJELC-AS (Short shaft )

RJELC-AM  ( Standard shaft)

RJELC-AL   (Long shaft)


Four Differnt Reloading units for choose

Type A :  RJELC-R-4525    RJELC-R-4535   RJELC-R-4548  RJELC-R-6035  RJELC-R-6048

Type B RJELC-RA-4525, RJELC-RA-4535  RJELC-RA-4540  RJELC-RA-4548 RJELC-RA-6025

RJELC-RA-6035  RJELC-RA-6048

Type CRJELC-RT-45T   RJELC-RT-45P    RJELC-RT-45B    RJELC-RT-60P    RJELC-RT-60B

Type D: RJELC-RAT-45T  RJELC-RAT-45P    RJELC-RAT-45B  RJELC-RAT-60T   RJELC-RAT-60P   RJELC-RAT-60B


WE WELCOME OEM COOPERATION !
